Packaging atlas / R06
Book-style Rigid Box.
A book-style rigid format provides a wide opening for gift sets or brand presentation.

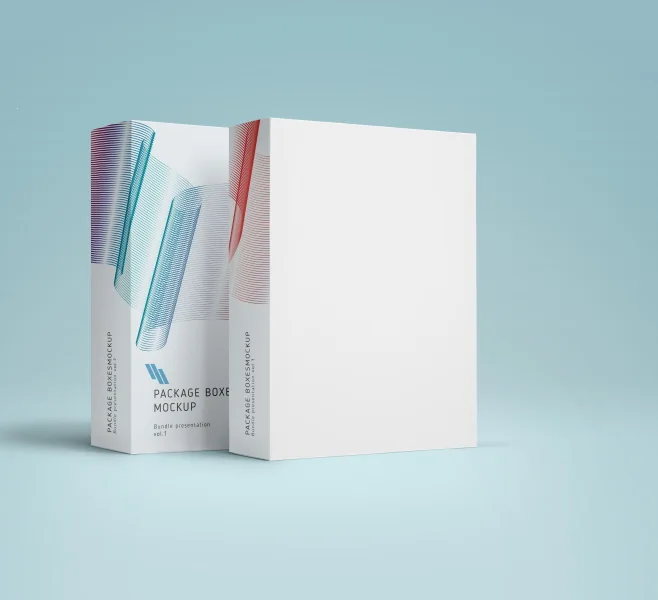

Licensed mockup · Perspective 1New perspectives: 3 additional design references. Artwork is illustrative; the exact box construction must be confirmed before production.
Inside the structure / R06The anatomy
The anatomy
of the idea.
This diagram illustrates how this family may fold, close or assemble. It is deliberately not dimensioned, and it must not be used as production artwork or a tooling file.
Cut (illustrative) Crease (illustrative) Glue / assembly notes
Not production-ready: A supplier must engineer the final dieline for product size, board thickness, tooling allowances and assembly method.
How to read these diagrams ↗R05
