F10Folding cartons
Sleeve Carton
A printed sleeve wraps around an existing tray or inner pack for a versatile branded finish.
Packaging atlas / F11
Tray & Sleeve Box.
A separate tray slides within an outer sleeve to build a distinctive unboxing sequence.

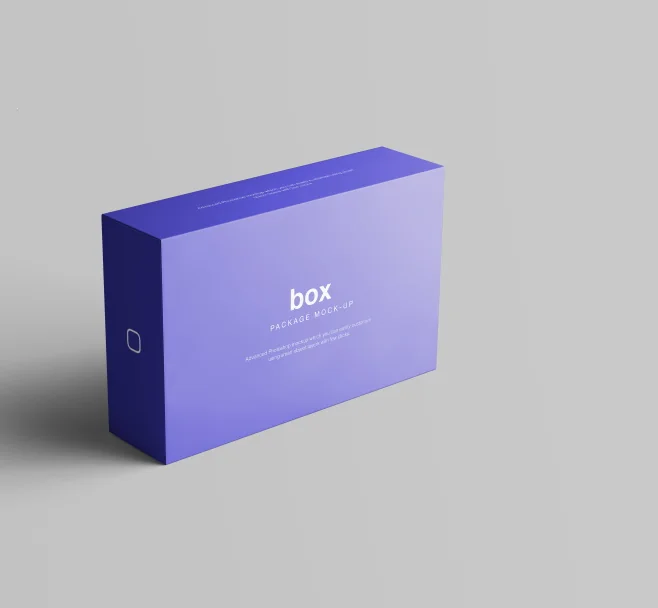

Licensed mockup · Three-quarterNew perspectives: 7 additional design references. Artwork is illustrative; the exact box construction must be confirmed before production.
Inside the structure / F11The anatomy
The anatomy
of the idea.
This diagram illustrates how this family may fold, close or assemble. It is deliberately not dimensioned, and it must not be used as production artwork or a tooling file.
Cut (illustrative) Crease (illustrative) Glue / assembly notes
Not production-ready: A supplier must engineer the final dieline for product size, board thickness, tooling allowances and assembly method.
How to read these diagrams ↗F10
