F01Folding cartons
Straight Tuck End
Straight tuck flaps on the same side create a neat presentation for lightweight retail products.
Packaging atlas / F02
Reverse Tuck End.
Opposing tuck flaps offer a familiar, efficient folding-carton construction for everyday retail.

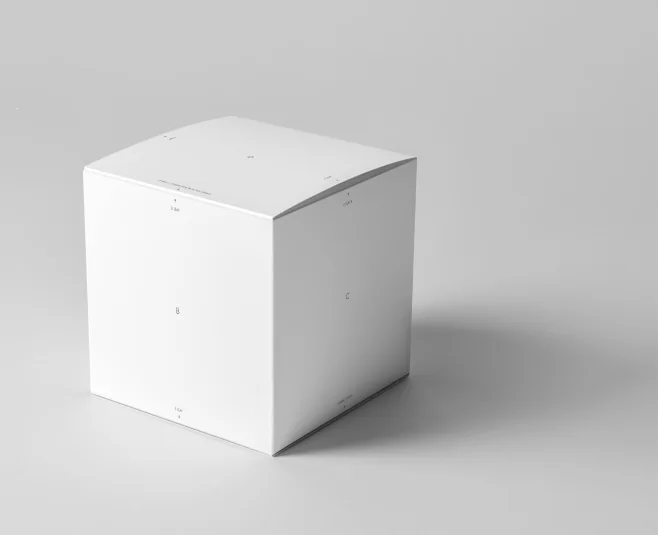

Licensed mockup · Three-quarterNew perspectives: 7 additional design references. Artwork is illustrative; the exact box construction must be confirmed before production.
Inside the structure / F02The anatomy
The anatomy
of the idea.
This diagram illustrates how this family may fold, close or assemble. It is deliberately not dimensioned, and it must not be used as production artwork or a tooling file.
Cut (illustrative) Crease (illustrative) Glue / assembly notes
Not production-ready: A supplier must engineer the final dieline for product size, board thickness, tooling allowances and assembly method.
How to read these diagrams ↗F01
F03Folding cartons
Tuck Top Snap Lock Bottom
A tuck-top carton with a manually assembled locking base for items needing added bottom support.
F04Folding cartons
Auto Lock Bottom
A pre-glued auto-locking base helps speed up manual packing and shelf-ready presentation.
F05Folding cartons
Seal End Carton
A closed-end carton format suited to sealed retail packs and controlled packing workflows.
